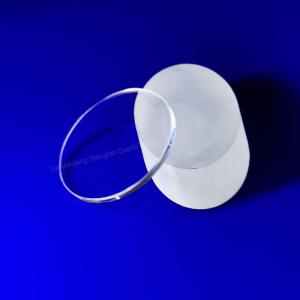

Clear Quartz Glass Plates Polished Fused Silica Glass Sheet

Place of Origin : jiangsu.China

Brand Name : ShengFan

Model Number : QSP-1

Packaging Details : plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet

Supply Ability : 10000 Piece/Pieces per Month

Price : $0.50 - $10.00/pieces

Type : Clear Quartz Plate

Application : Semiconductor, optical

Thickness : 0.5-100mm

Shape : Square

Processing Service : Bending, Welding, Punching, polishing

Product Name : quartz plate

Material : SIO2>99.99%

Density : 2.2g/cm3

Working Temparature : 1150℃

Hardness : Morse 6.5

Melt Point : 1750-1850℃

Acid tolerance : 30 times than Ceramics,150 times than stainless steel

Size : Customized

Annealing point : 1180℃

Strain point : 1100℃

Port : shanghai and Qindao port

Contact Now

Shengfan Quartz plate characteristic
*Brand shengfanquartz
*SIO2 99.99%
*Density 2.2(g/cm³)
*Degree of hardness moh’ scale 6.6
*Melting point 1732℃
* Working temperature 1100℃
*Annealing point 1180℃
*Softening point 1630℃
Setting Information
Color Transparent
Shape Circular / Round
Standard JGS1,JGS2,JGS3
Material 99.99% sio2
Diameter 1-800mm
Thickness 0.2-100mm
Application Optics quartz windows
Density 6.6
Light Transmittance >92%
Hardness Mose 6.5
Resistance Value 1000 times than ordinary glass

Product Details

1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical performance . 4. without surface coating and infectant. 5. Health care and environmental protection. 6. Any dimension can be made. 7. CE.RoHs SGS approved.
Density 2.2x103 kg/m3 Hardness 5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength 4.8x107 Pa (N/m2) (7000 psi) Design Compressive Strength Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus 3.7x1010 Pa (5.3x106 psi) Rigidity Modulus 3.1x1010 Pa (4.5x106 psi)
Softening Point 1730°C Annealing Point 1215°C
JGS1(ZS-1)
 JGS2(ZS-2)

JG

S3(HS)
Spectral characteristics 180-2500nm 200-2500nm 260-3500nm
The average transmittance 90% 85% 85%
Bubble class 0
2
 2
Birefringence 1-2 1-2 1-2
Grain structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change clolor Sight discoloration Change color
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Applied range:
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields
Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet

Our Services & Strength

The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
Shengfan Quartz plate characteristic
*Brand shengfanquartz
*SIO2 99.99%
*Density 2.2(g/cm³)
*Degree of hardness moh’ scale 6.6
*Melting point 1732℃
* Working temperature 1100℃
*Annealing point 1180℃
*Softening point 1630℃
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Setting Information
Color Transparent
Shape Circular / Round
Standard JGS1,JGS2,JGS3
Material 99.99% sio2
Diameter 1-800mm
Thickness 0.2-100mm
Application Optics quartz windows
Density 6.6
Light Transmittance >92%
Hardness Mose 6.5
Resistance Value 1000 times than ordinary glass
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Product Details
1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical performance . 4. without surface coating and infectant. 5. Health care and environmental protection. 6. Any dimension can be made. 7. CE.RoHs SGS approved.
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Density 2.2x103 kg/m3 Hardness 5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength 4.8x107 Pa (N/m2) (7000 psi) Design Compressive Strength Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus 3.7x1010 Pa (5.3x106 psi) Rigidity Modulus 3.1x1010 Pa (4.5x106 psi)
Softening Point 1730°C Annealing Point 1215°C
JGS1(ZS-1)
 JGS2(ZS-2) JGS3(HS)
Spectral characteristics 180-2500nm 200-2500nm 260-3500nm
The average transmittance 90% 85% 85%
Bubble class 0
2
 2
Birefringence 1-2 1-2 1-2
Grain structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change clolor Sight discoloration Change color
Details Images
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
product uses

applied range:

This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet

germicidal lamp
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet

germicidal lamp

Clear Quartz Glass Plates Polished Fused Silica Glass Sheet

germicidal lamp

Clear Quartz Glass Plates Polished Fused Silica Glass Sheet

germicidal lamp

production flow
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Packing & Delivery
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet
Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Clear Quartz Glass Plates Polished Fused Silica Glass Sheet

Our Services & Strength

The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
